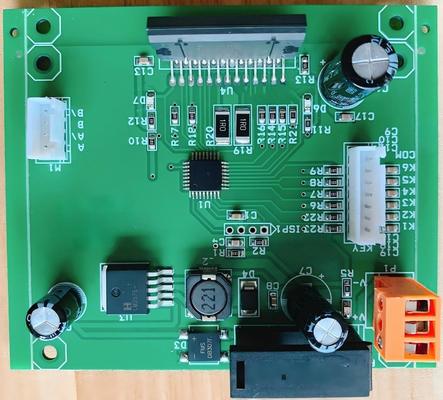

Product Features:
- Layer: 2 layer FR4 TG135 1.6mm
- Product Name: EMS PCB Assembly
- PCB Assembly Method: SMT and DIP
- Surface: LF HAL
- Copper Thickness: 0.5oz-3oz
- Product Type: Electronic Manufacturing Service
Applications:
The 2-layer PCBA with normal is ideal for projects that require moderate circuit complexity but do not involve high-speed signal integrity challenges, extreme operating temperatures, or extremely dense component placement.
1. Consumer Electronics (Simple to Moderate)
These are general, everyday devices where cost-efficiency is a major factor.
• LED Lighting Systems: Simple driver and control circuitry for LED bulbs and strips.
• Small Appliances & Gadgets: Basic controllers in coffee makers, toasters, simple remote controls, and alarm clocks.
• Computer Peripherals: Keyboards, mice, webcams, and simple USB hubs.
• Audio Equipment: Simple amplifiers, speakers, and low-end audio interfaces.
2. Low-to-Medium Power & Control Systems
Applications that require stable power delivery without extreme thermal loads.
• Power Supply Units (Simple): Basic AC/DC converters, regulators, and linear power supplies.
• Motor Drivers: Simple control circuits for small motors.
• Battery-Powered Devices: Charging circuits and power management for non-critical, portable electronics.
• Vending Machines & Traffic Systems: Control logic and display drivers.
3. Prototyping and Development
Because of its low cost and rapid manufacturing time, it is frequently used for initial testing.
• Microcontroller Boards: Development boards for microcontrollers (MCUs) like basic Arduino or ESP-based systems.
• Circuit Prototyping: Breadboard-style adapter boards for surface-mount components.
Summary of Application Suitability
In summary, the 2-layer PCBA with normal is the go-to solution for products where:
1)Most Cost-Effective option for mass production.
2)Low to Moderate circuit density and routing requirements.
3)Standard operating environments (not high-heat or automotive/industrial extremes).
4)Sufficient for low-frequency digital and analog signals.
