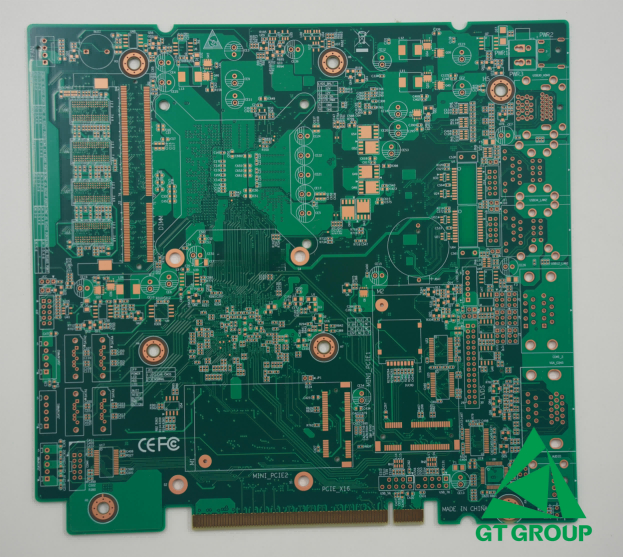

10 Layer Rigid Printed Circuit Board With Tg150 FR4 OSP+ Golden Finger Technology

MOQ:	1 painel
preço:	Negociável
Payment Terms:	T/T.

Detail Information

Descrição do produto

Detail Information

Certificação:

ISO9001, TS16949

Item:

Camada da placa de circuito personalizada 10

Cobre grosso:

1oz para cada camada

Espessura da placa:

FR4 TG150 1,6 mm

Serviço PCBA:

SMD SMT Montagem de componentes DIP

Tecnologia:

Controle de impressão, dedo mais dourado+ chanfro

Linha mínima espaço:

3 milímetros (0,075 mm)

Tamanho mínimo do orifício:

0,2 mm

Tamanho do orifício min:

0,2 mm

Detalhes da embalagem:

Pacote a vácuo

Destacar:

10 layer rigid PCB with Tg150

FR4 heavy copper PCB with OSP

golden finger technology PCB

Descrição do produto

Product Description:

A 10-layer, 1 oz rigid PCB is a high-performance circuit board with 10 conductive copper layers and a standard copper thickness of 1 ounce on each layer. This type of board is used in advanced electronics where high density, reliability, and signal integrity are essential.

The term "10-layer" refers to the number of conductive copper layers. These layers are stacked and separated by insulating materials (dielectrics) like FR-4 (fiberglass-epoxy laminate). The stack-up of these layers is carefully designed to optimize performance. A typical configuration might include:

Signal Layers: These layers carry data and signals between components. With 10 layers, designers have ample space to route complex circuits, reducing signal congestion and allowing for high-density component placement.

Power and Ground Planes: Dedicated layers for power and ground provide a stable and low-impedance path for current, which is crucial for high-speed digital circuits. They also act as a shield to minimize electromagnetic interference (EMI) and help with heat dissipation.

Technical Parameters:

Product item	10 layer rigid PCB board
Board Thickness	FR4 Tg150 1.6mm
Processing Technology	Impendace control, golden finger
Solder Mask Color	Geen soldermask+ white silkscreen
Standard Testing	IPC Class 2
Minimum Hole Size	0.2mm
Pcba Service	SMD SMT DIP Component Assembly
Minimum Line Space	3mil (0.075mm)
Min Hole Size	0.2MM

Support and Services:

Our Product Technical Support and Services for the Heavy Copper PCB include:

- Expert consultation on design and manufacturing considerations

- Assistance with material selection and specifications

- Guidance on meeting industry standards and regulations

- Troubleshooting and resolution of technical issues

- Customization options to meet specific requirements
